Shake Table Controller

DANCE: Digital Seismic Shake Table Controller for 1-6 DOF Systems

DANCE is a PC-based software suite designed to address the unique requirements of seismic shake table testing.

  • Transient (seismic) testing i.e. IEEE-344, AC-156, GR-63
  • Sine sweep, sine beat, sine stress testing
  • Generator for spectrum compatible time histories (see SPECTIME)
  • Semi-automatic and manual equalization matching to required response spectra
  • Performs IEEE-344 independence and stationary checks
  • Up to 200 data acquisition channels
  • Integrated self-calibration utility
  • Integrated automatic MS Office report generation module

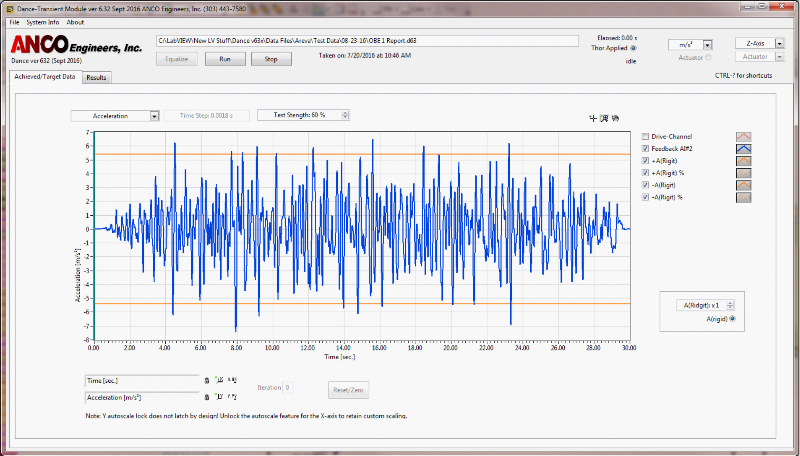

Typical 30 second OSPHD seismic time history

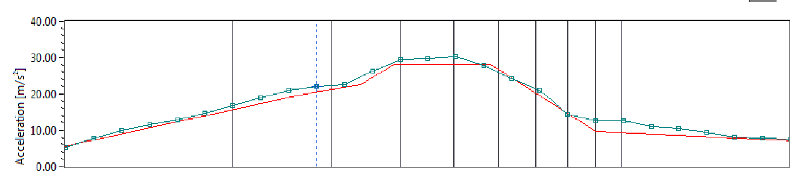

Typical Required Response Spectrum (RRS) of a test item

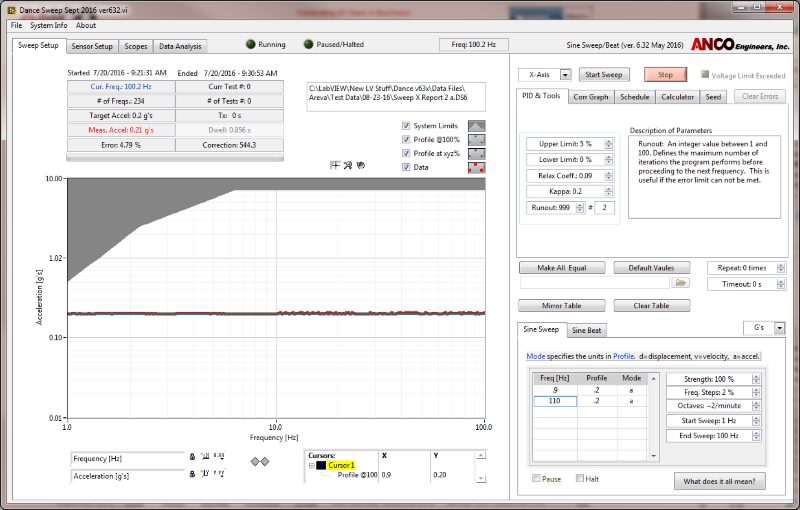

Sine Sweep/Beat and RIM Test Module.
